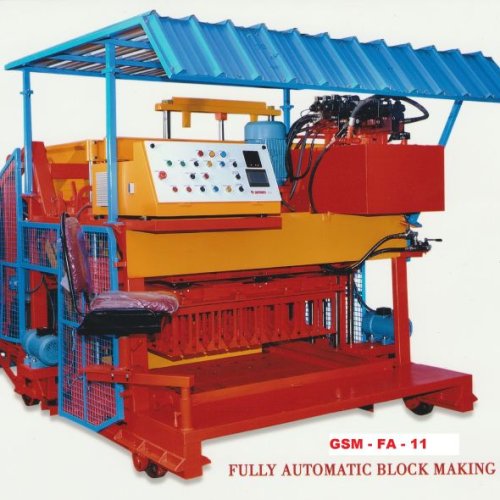

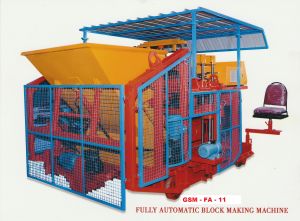

Fully Automatic Hollow Concrete Block Making Machine

This Is egg laying type Fully automatic machine. We designed various new models in fully automatic hollow block machines.
This Fully Automatic Concrete Block Making Machine is an fully automatic egg laying type machine.This Machine can be operate without any Man power. This gives a production capacity 16,10, and 8 nos of blocks per stroke respectively in the sizes of 4 inch, 6 inches and 8 inch.The machine is of high quality and so the blocks produced in the machinery also coming very good quality. Superior quality parts are used. The switches and connectors use in the pannel board are of ABB. Valve is of Italian and hydraulic hose is of USA. The pump and valve will last for about 10 years giving trouble free and good performance. Heavy type vibrator gives smooth finishing to the blocks, the machine is heavy build so as to avoid any problem during the function of the machine. We offer a 1 years guarantee.
Specifications:
Power
35 HP,3 Phase
Hydraulic Pumps
7.5 HP
Vibration(Double)
1.5 HP 3 Nos
Traveler - Hydro Motor

left right

1.5 HP
Mixer machine
20 HP
Hydraulic oil
160 Liters
Production Rate / 8 Hours
15000 Nos
Size of Moulds
400x200x100(16x8x4)16 Nos

400x200x150(16x8x6)10 Nos

400x200x200(16x8x8)8 Nos
